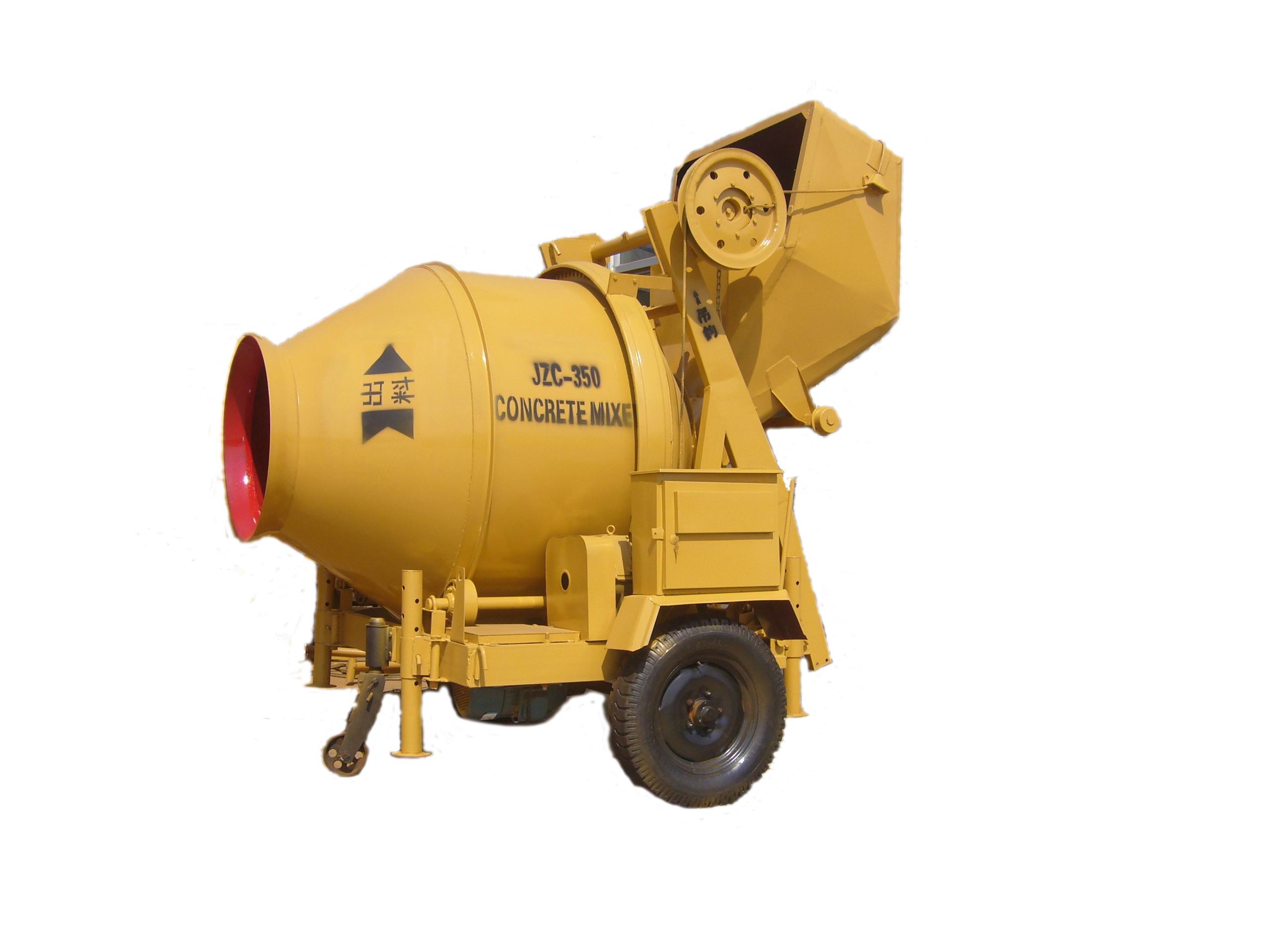

MODEL . JZC-350
ELECTRIC CONCRETE MIXER
HEAVY DUTY CHANNEL CHASSIS
TOWABLE CHASSIS WITH 2 PNEUMATIC WHEELS
LIFTING HOPPERS FOR 500 LITRES EELCTRIC CONCRETE MIXER
Packing : Naked package , 1 pc covered/wrapped with plastic only .
QUANTITY SUITABLE FOR ONE 40FT HC CONTAINER : 5 PCS
|
Main Technical Parameter |
|
Model | MOQ: 2 PCS
JZC350 |
Water Supply Precision |
Error ≤2﹪ |
|
Out Capacity |
350 L |
Drum Rotation Speed |
14 RPM |
|
In Capacity |
560 L |
Drum Dimesion |
1550 x 1880 mm |
|
Productivity |
14 m3/ h |
Tyre Size |
6 50-16 |
|
Mixing Motor Power |
5.5 KW |
Max Driving Speed |
20km/ h |
|
Motor Speed |
1440 R.M.P |
Drum Thickness |
6.0mm-8.0mm |
|
Power of Water Pump |
0.75 KW |
Total Weight |
1350 KGS |
|
Dimensions in Container |
260×220×220 cm |
Power Supply |
Three Phase, 380V, 50HZ |
|
