ITEM CODE: RDCM-500DH

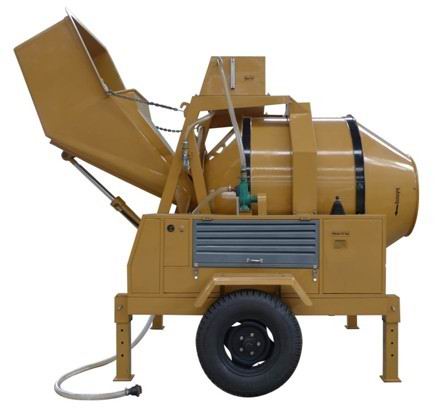

DIESEL CONCRETE MIXER
* Heavy duty channel chassis
* Towable Chassis with two pneumatic wheels
* Hydraulic or wire rope tipping hopper
* Power: Water-cooled diesel engine
* QUANTITY SUITABLE FOR 1 X 40FT HQ: 4 PCS
* MOQ : 2 PCS
Main Technical Specifications
|
Model |
RDCM-500DH |
|
Discharging Capacity |
500 L |
|
Loading Capacity |
800 L |
|
Output |
20-22 m3/h |
|
Drum Rotation |
13-15 rpm |
|
Maximum Size of Aggregate |
80 mm |
|
Diesel Engine Power |
13.2KW |
|
Diesel Engine Type |
Single Cylinder, Water Cool |
|
Input Power for Water Pump |
2.2~3 KW |
|
Hopper Lifting |
By hydraulic system |
|
Tyre Size |
7.50-16 |
|
Overall Dimensions (L×W×H) |
3750×2300×3800 mm |
|
Shipping Dimensions (L×W×H) |
2300×3300×2500 mm |
|
Overall Weight |
2000 kg |
|
