Item code . ILC0001

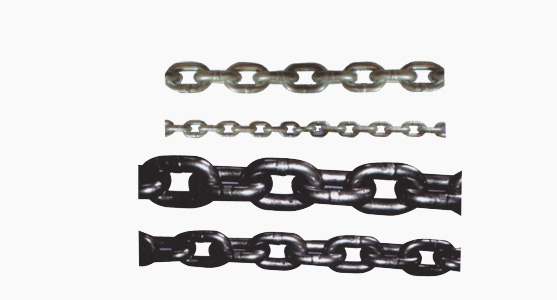

INDUSTRIAL LIFTING CHAIN
detailed technical specifications as below:
|
specifications |
Work load |
Nominal diameter |
Pitch |
Wide |
In width |
NW |
| 6.0 |
1.1 |
6.0 |
18 |
20.45 |
7.5 |
81 |
| 6.3 |
1.25 |
6.3 |
19 |
21.48 |
7.9 |
90 |
| 7.1 |
1.60 |
7.1 |
21 |
23.54 |
8.9 |
116 |
| 8.0 |
2.00 |
8.0 |
24 |
26.60 |
10.0 |
142 |
| 9.0 |
2.50 |
9.0 |
27 |
30.68 |
11.3 |
182 |
| 9.5 |
2.80 |
9.5 |
29 |
31.72 |
11.9 |
198 |
| 10.0 |
3.20 |
10.0 |
30 |
33.75 |
12.5 |
221 |
| 11.2 |
4.00 |
11.2 |
34 |
37.84 |
14.0 |
260 |
| 13.0 |
5.40 |
13.0 |
39 |
43.98 |
16.3 |
400 |
| 16.0 |
8.00 |
16.0 |
48 |
53.20 |
20.0 |
564 |
| specifications |
Work load |
Nominal diameter |
Pitch |
Wide |
In width |
NW |
| 6.0 |
1.1 |
6.0 |
30 |
28 |
21 |
7.8 |
| 6.3 |
1.25 |
6.3 |
32 |
30 |
22 |
7.9 |
| 7.1 |
1.60 |
7.1 |
36 |
34 |
25 |
8.9 |
| 8.0 |
2.00 |
8.0 |
40 |
38 |
28 |
10.0 |
| 9.0 |
2.50 |
9.0 |
45 |
43 |
32 |
11.3 |
| 10.0 |
3.20 |
10.0 |
50 |
47 |
35 |
12.5 |
| 11.2 |
4.00 |
11.2 |
56 |
53 |
39 |
14.0 |
| 13.0 |
5.40 |
13.0 |
65 |
62 |
46 |
16.3 |
| 16.0 |
8.00 |
16.0 |
80 |
76 |
56 |
20.0 |
| specifications |
Work load |
Nominal diameter |
Pitch |
Wide |
NW |
| 6.3 |
1.25 |
6.3 |
19.1 |
20.8 |
90 |
| 7.1 |
1.6 |
7.1 |
20.2 |
23.2 |
116 |
| 7.9 |
2.0 |
7.9 |
23 |
25.9 |
134 |
| 9.5 |
3.0 |
9.5 |
28.6 |
31.3 |
198 | |
