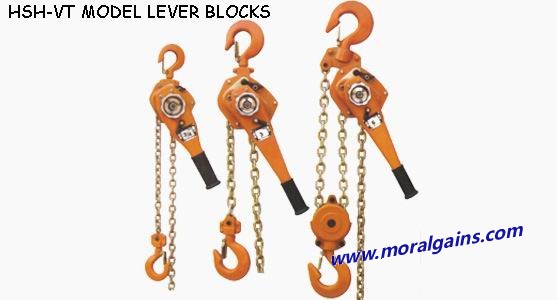

HSH-VT series
LEVER BLOCKS
detailed technical sepcifications as below
|
Model |
|
HSH-VT-0.75 |
HSH-VT-1.5 |
HSH-VT-3 |
HSH-VT-6 |
|
Lifting capacity |
Ton |
0.75 |
1.5 |
3 |
6 |
|
Standard lifting height |
meter |
1.5 |
1.5 |
1.5 |
1.5 |
|
Headroom between two hooks |
mm |
295 |
335 |
405 |
550 |
|
torque force of chain pull |
kg |
15 |
18 |
9 |
9 |
|
Diameter of load chain |
mm |
6.3 |
7.1 |
1.5 |
105 |
|
Block Main Specifications( mm ) |
a |
|
148 |
163 |
181 |
244 |
|
b |
|
128 |
148 |
181 |
244 |
|
c |
|
295 |
335 |
405 |
550 |
|
d |
|
256 |
368 |
368 |
368 |
|
g |
|
27 |
34 |
43 |
47 |
|
Net weight |
kg |
6.9 |
9.7 |
16.3 |
26.7 |
|
